Manhole and Vault Inspections: 5 Critical Safety Steps for Underground Employees

Beneath every major American city lies a hidden electrical network that powers homes, hospitals and commercial industry. Manholes and vaults are the gateways to these underground systems, providing access to low-, medium- and high-voltage infrastructure essential to reliable power distribution. Because they also present some of the most hazardous conditions that utility workers regularly encounter, conducting thorough manhole and vault inspections is foundational to employee safety, system integrity and operational reliability.

Manholes and vaults are typically classified as confined spaces. Per OSHA 29 CFR 1910.146(b), a confined space is “large enough and so configured that an employee can bodily enter and perform assigned work; and has limited or restricted means for entry or exit; and is not designed for continuous employee occupancy.” The utility industry also has an “enclosed space” classification, defined at 1910.269(x) as a “working space, such as a manhole, vault, tunnel, or shaft, that has a limited means of egress or entry, that is designed for periodic employee entry under normal operating conditions, and that, under normal conditions, does not contain a hazardous atmosphere, but may contain a hazardous atmosphere under abnormal conditions” (for more on confined and enclosed spaces, see https://incident-prevention.com/blog/the-skinny-on-confined-spaces/). These spaces can quickly become dangerous due to atmospheric hazards, energized equipment and structural instability. Without a proper inspection, workers who enter them could be incapacitated or even killed within seconds.

Understanding the Hazards
Manhole and vault inspections serve three essential functions: identifying hazards prior to personnel exposure; uncovering equipment damage and deterioration; and preventing failures that could lead to outages or costly repairs. Note that even newly installed vaults can harbor risks, reinforcing the need for disciplined inspections.

Atmospheric hazards – including oxygen deficiency, flammable gases and toxic contaminants – are among the greatest risks crews face when working in underground electrical spaces. According to the U.S. Bureau of Labor Statistics, more than half of annual confined space fatalities are linked to hazardous atmospheres.

Electrical risks are equally threatening. Energized cables, arc flash events, switch and cable failures, and stray voltage can cause severe injury or death. Physical hazards – think slips, trips and restricted movement – are amplified by poor lighting and uneven surfaces. Water intrusion may introduce additional dangers, such as energized conductive paths and insulation failure. In combination with limited entry and exit points, these issues can make rescue operations difficult and time sensitive.

A few procedural items must be addressed before an employee is authorized to enter and inspect a confined space. Manhole and vault entry must follow established confined space entry standards, including OSHA 1910.146 and other industry guidance (e.g., IEEE enclosed space procedures), which require employers to evaluate hazards, establish safe entry conditions and implement protective measures prior to worker entry.

Permit-Required Confined Spaces
The first step toward safe manhole or vault entry is to determine whether the space requires a permit.  A confined space qualifies if it contains or could contain hazardous atmospheres, engulfment risks or other serious threats. Once identified, the permit-required entry process must be followed. Employees will ideally be able to mitigate any hazards and remove the permit prior to beginning work, alleviating its constraints.

A structured three-person approach is essential to safe underground work. The authorized entrant performs work inside the space; an attendant remains outside, monitoring conditions and maintaining communication; and an entry supervisor verifies that all procedures are followed and conditions are safe. This layered responsibility system aids in mitigating risk and ensuring rapid response should conditions change.

Entry procedures begin with pre-job planning and a hazard assessment. The site must be secured, covers must be safely removed, and pedestrian barriers must be installed. In addition, atmospheric testing must be conducted before entry and continuously during the operation. Use ventilation to establish and maintain safe conditions, with rescue equipment in place prior to entry. These actions are mandatory, not optional, serving as critical safeguards against the unique dangers of confined spaces.

Gas Monitors
The modern gas monitor is a lifesaving device that provides real-time status of atmospheric conditions. It is the worker’s first line of defense against invisible confined space hazards.

A standard four-gas monitor measures oxygen content, flammable gases and vapors, and toxic air contaminants. To ensure accurate test readings, OSHA requires oxygen to be measured first, gases and vapors second, followed by toxic contaminants (see 1910.146(c)(5)(ii)(C)). Acceptable oxygen levels range from 19.5% to 23.5%; any flammable gases must remain at or below 10% of their lower flammable limit.

Proper gas monitor use involves capturing more than a single reading. Because gases can maintain different layers within a confined space, testing must occur at multiple levels (i.e., top, middle and bottom) prior to entry. Continuous monitoring is nonnegotiable as atmospheric conditions can rapidly change due to leaks, work activities and environmental factors. Outfit workers with personal monitors within their breathing zone to ensure immediate hazard detection. In addition, be sure to hang a gas monitor from the manhole rescue cage, dropping the hose into the hole just above the employee’s head.

5 Key Inspection Tasks
Once authorized to enter a confined space, workers must conduct a thorough, sequential inspection that includes these five critical steps.

1. Assess the site and identify all hazards. These activities begin at the surface with the crew evaluating the physical condition of the manhole or vault inside and out. Look for signs of damage, such as sunken covers, broken ladders and doors, cracks along the walls, water seepage and duct issues. Then confirm the location against system records and identify nearby utilities that could introduce additional hazards.

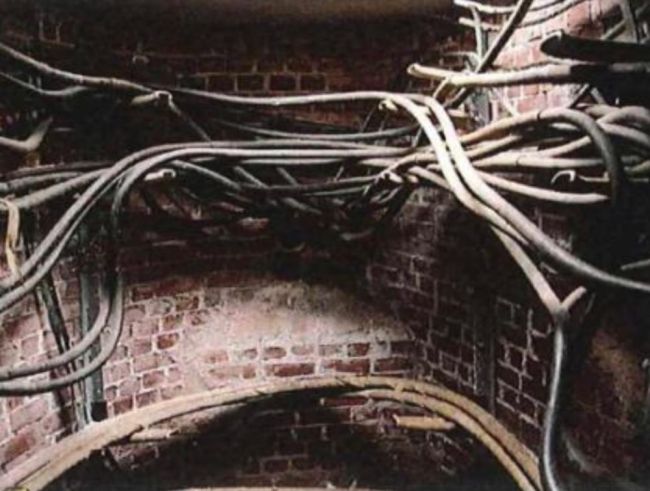

2. Evaluate equipment conditions. Once safe entry is established, shift attention to electrical infrastructure conditions. Equipment assessment is an essential component of the inspection process as it directly impacts safety and system reliability. Examine cables and terminations for signs of thermal damage, discoloration and deformation. Oil seepage, corrosion and physical stress can indicate underlying failures. Check splices, elbows and bushings for evidence of overheating or arcing. Verify the accuracy of cable identification tags.

Any unintended electrical presence inside a confined space can pose a serious hazard, so this step must also include stray voltage testing. Even minor abnormalities should be treated with caution as they could signify larger systemic issues. Early detection allows for corrective action before failures occur, protecting workers and equipment and reducing the risk of outages.

3. Remove water and debris. Common in underground spaces, water and debris must be cleared from the manhole or vault before an inspection or work begins. Standing water can compromise insulation, create conductive paths, obscure hazards, and increase the risk of electrical faults and equipment damage.

Prioritize pumping water out of the space, then remove dirt, trash, construction materials and any other debris. Doing so improves visibility, reduces trip hazards, allows inspectors to fully assess equipment conditions, and ensures that cables and terminations are not partially covered or submerged.

4. Confirm structural integrity. Evaluate the physical structure of the space to confirm that it can safely support workers and equipment. Any deficiencies must be reported to supervisors and/or engineering personnel and rectified before any work begins. Look for cracks, spalling and water intrusion in walls and ceilings, which could indicate deterioration or impending failure. Check ladders, covers and all other access points for stability and proper fit. Examine cable supports, pulling eyes and racking systems for wear and corrosion.

5. Document and report findings. Every observation, measurement and anomaly must be recorded in detail. This means completing inspection checklists, recording atmospheric readings and capturing photographs of unusual conditions. Documentation is a critical tool, providing a historical record that demonstrates regulatory compliance and informs future inspections as well as maintenance and engineering decisions.

Conclusion
Manhole and vault work presents a complex mix of physical risks, demanding careful pre-job planning, thorough analysis and strict adherence to established safe procedures. From atmospheric testing and monitoring to equipment assessment, structural evaluation and debris removal, each step of the inspection process plays a vital role in protecting workers and maintaining system reliability. Qualified professionals who approach every inspection with discipline and attention to detail have the power to transform these hazardous environments into controlled workspaces.
